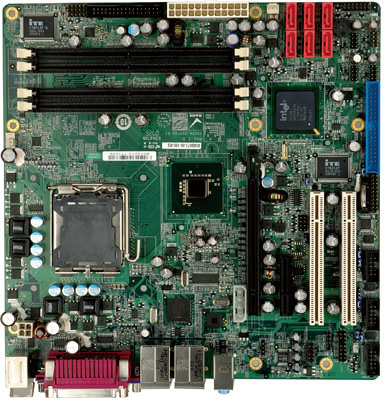

威強工業主板----IMB-Q354
Features
1. Micro ATX 和 RoHS compliant
2. 支持 Intel® LGA775 Intel® Core™2 Quad, Core™2 Duo, 45 nm 处理器支持 1333/1066/800 MHz FSB
3. Intel® Q35 & ICH9DO platform
4. 六个 SATA 3Gb/s 支持 Intel® Matrix Storage Technology
5. Intel® PCIe GbE 支持 Intel® AMT 3.0
6. TPM1.2 IT 安全解决方案
7. 威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份和恢复
Specifications
 IMB-Q354.pdf
|
CPU |
LGA775 45nm Intel® Core™2 Quad, Core™ 2 Duo, Celeron® CPU 支持 1333/1066/800 MHz FSB |
|
芯片组 |
Intel® Q35 + ICH9DO |
|
BIOS |
AMI BIOS |
|
内存 |
4 x 240-pin 2 GB (max.) 800/667 MHz 双通道 DDR2 SDRAM DIMM (系统最大支持 8 GB) |
|
以太网 |
Dual GbE
LAN1: Intel® 82573L (MAC + PHY)
LAN2: Intel® 82566DM (PHY) 支持 Intel® AMT 支持 |
|
I/O接口 |
4 x RS-232
12 x USB 2.0
1 x LPT 1 x FDD
2 x PS/2 for KB/MS (外部)
6 x SATA 3Gb/s with RAID 0,1,5,10 支持 |
|
数字I/O |
8-bit 数字 I/O, 4-bit 输入 / 4-bit 输出 |
|
Super I/O |
ITE8712F |
|
红外连接器 |
1 x 红外接口 by pin header |
|
TPM |
1 x 20-pin header 板载支持 TPM (Trusted Platform Module) |
|
音频 |
Realtek ALC883 HD 音频编解码 |
|
固态电子盘 |
N/A |
|
显示接口 |
VGA集成Intel® Q35 |
|
扩展槽 |
1 x PCIe x16
1 x PCIe x4
2 x PCI |
|
看门狗定时器 |
软件可编程支持 1~255sec. 系统复位 |
|
电源 |
ATX |
|
功耗 |
3.3V@2.41A, 5V@5.71A, 5Vsb@0.13A, 12V@3.69A(2DMark 2001)
Intel® Core™2 Duo E6850 3.0GHz , 8GB DDR2 800MHz, 3DMark 2001 |
|
图形 |
VGA intergated in Intel® Q35 |
|
工作温度 |
操作: 0ºC ~ 60ºC (32ºF ~ 140ºF) |
|
相对湿度 |
操作: 5% ~95% 无冷凝 |
|
尺寸 |
244 mm x 244 mm |
|
重量 |
GW: 1100 g |
Ordering Information
|
Part No. |
Description |
|
IMB-Q354-R10 |
Mirco ATX motherboard supports 45 nm LGA775 Intel® Core™2 Duo CPU with a 800/1066/1333 MHz FSB, Intel® Q35 & ICH9DO platform, dual Intel® PCIe GbE, six SATA 3Gb/s with RAID functions |
|
CF-520-RS-R11 |
High performance CPU cooler, (115mm x 115mm x 67mm, 115W) |
|
TPM-IN01-R11 |
20-Pin Infineon TPM module, software management tool, firmware V3.17 |
|
SDVO-100VGA-R10 |
PCIe x16 VGA output SDVO card supports dual display (IEI CPU board only) |
|
SDVO-100DVI-R10 |
PCIe x16 DVI output SDVO card supports dual display (IEI CPU board only) |
Packing List
|
1 * IMB-Q354 single board computer |
3 * SATA power cable (P/N:32102-000100-200-RS) |
|
1 * Dual RS-232 cable (P/N:19800-000051-RS) |
1 * I/O shielding (P/N:45014-0017C0-00-RS) |
|
6 * SATA cable (P/N:32000-062800-RS) |
1 * USB cable (P/N:19800-003100-100-RS) |
|
1 * Mini jumper pack |
1 * Utility CD |
|
1 * QIG |
|
|
| |
|
|
|
