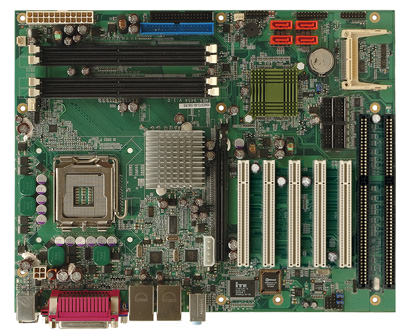

威強工業主板----IMBA-9454ISA
Features
1. Intel® Core™2 Duo, Pentium® D, Pentium® 4, Celeron® D 处理器集成于 LGA 775 程序包
2. 集成于tel® GMA950 图形引擎提供高质量显示通过 VGA 接口
3. 双通道 DDR2-400/533/667 MHz SDRAM 插槽支持达到 4 GB
4. TPM V1.2 硬件安全功能支持
5. 四个 SATA 3Gb/s, 八个 USB 2.0, 音频并仅支持TX 电源
6. 威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份和恢复
Specifications
 IMBA-9454ISA.pdf
|
CPU |
LGA 775 Intel® Core™2 Duo, Pentium® 4/Celeron® D 处理器, FSB 533/800/1066 MHz |
|
芯片组 |
Intel® 945G + ICH7 |
|
BIOS |
AMI BIOS |
|
内存 |
4 x 240-pin 双通道 DDR2 400/533/667 MHz 达到 4 GB |
|
以太网 |
Dual PCIe Broadcom BCM5787M GbE 芯片组 |
|
I/O接口 |
8 x USB 2.0
4 x SATA 3Gb/s
1 x LPT 1 x FDD
5 x RS-232
1 x RS-232/422/485
2 x PS/2 for KB/MS
1 x IDE
1 x CF Type II
1 x 20-pin LPC for TPM |
|
数字I/O |
8-bit 数字 I/O, 4-bit 输入/ 4-bit 输出 |
|
Super I/O |
ITE IT8712F |
|
红外连接器 |
1 x 红外接口 by pin header |
|
音频 |
Realtek ALC655 支持C’97 编解码 |
|
显示接口 |
VGA 集成于 Intel® 945G |
|
扩展槽 |
一个 PCIe x16 (支持 PCIe x1/ x16 PCIe 附加卡)
4 x PCI
1 x ISA
1 x PCI / ISA |
|
看门狗定时器 |
软件可编程支持 1-255 sec. 系统复位. |
|
电源 |
ATX 支持 |
|
功耗 |
5V@4.25A, 12V@10.17A, 3.3V@ 6.07A (Pentium 4 3.73GHz/1066 MHz CPU 支持 1 GB DDR2 667 MHz) |
|
工作温度 |
操作: 0°C ~ 60°C (32 ~ 140° F) |
|
相对湿度 |
操作: 5% ~ 95% 无冷凝 |
|
尺寸 |
305 (L) mm x 244 (W) mm |
|
重量 |
GW: 1200 g; NW: 650 g |
Ordering Information
|
Part No. |
Description |
|
IMBA-9454ISA-R10 |
ATX motherboard with Intel® LGA 775 Core™2 Duo, Pentium® D/ Pentium® 4/ Celeron® D Processor FSB 533/800/1066 MHz, PCIe GbE, SATA 3Gb/s and audio |
|
32200-000017-RS |
FDD Cable |
|
19800-003100-100-RS |
Dual USB Cable |
|
19800-000100-200-RS |
Four USB Cable |
|
32200-000063-RS |
RS-232/422/485 cable |
|
CF-775A-RS
CF-520-RS-R11 |
CPU cooler |
|
TPM-WI01-R10 |
20-pin WINBOND TPM Module, S/W Management Tool |
|
TPM-IN01-R11 |
20-Pin Infineon TPM module, software management tool, firmware V3.17 |
|
SDVO-100VGA-R10 |
PCIe x16 VGA Output SDVO card supports dual display (IEI CPU board only) |
|
SDVO-100DVI-R10 |
PCIe x16 DVI Output SDVO card supports dual display (IEI CPU board only) |
Packing List
|
1 * IMBA-9454 single board computer |
2 * Dual RS-232 cable (P/N:19800-000113-RS) |
|
1 * SATA power cable (P/N:32102-000100-200-RS) |
1 * I/O shielding (P/N:45014-0017C0-00-RS) |
|
1 * 1 x IDE cable (P/N:32200-000052-RS) |
2 * SATA cable (P/N:32000-0628000-RS) |
|
1 * Mini jumper pack |
1 * Utility CD |
|
1 * QIG |
| |
| |
|
|
|
