 EBC-2100.pdf
|

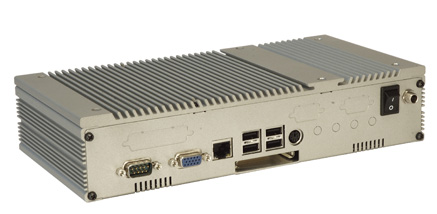

Model No. |
EBC-2100 |
|
主板 |
NANO-8522 NANO-LX, EPIC (165 x 115mm) |
|
EPIC NANO 标准I/O |
*3x 音频插孔, 1 x VGA |
|
驱动器空间 |
1 x 2.5" SATA HDD 空间 |
|
CF卡插槽 |
1 |
|
风扇 |
*1 x 4cm |
|
I/O口 |
RS-232 x 1 + *2 |
|
扩展槽 |
1 x PCI-104 |
|
材质 |
铝合金重金属 |
|
电源 |
12VDC 输入, 仅限 AT 模式 |
|
外观颜色 |
冷灰 |
|
Material |
铝/ SECC |
|
安装方式 |
Desktop Mount, wall mount |
|
USB 2.0 |
4 |
|
Ethernet |
1 |
|
工作温度 |
0°C~50°C |
|
相对湿度 |
10%到90% |
|
尺寸(D×W×H)(mm) |
134 mm x 262 mm x 56 mm |
|
重量(NW/GW) |
1 kg / 3 kg |
Ordering Information
|
Part No. |
Description |
|
EBC-2100-R40 |
Embedded chassis for NANO-8522/GX/LX, compatible with 2.5" SATA hard drive, 60W power adapter with ERP and PSE certificates, sliver, RoHS |
|
32000-114001-RS |
2.5” SATA HDD cable with 2-pin WAFER 2.0mm power cable, for NANO-945GSE-N270 in EBC-2101, 20cm |
|
19100-000027-RS |
4010 system fan, +12V ball bearing |
|
32200-000037-RS |
44-pin IDE cable for 2.5" hard drive |
Packing List
|
1 * EBC-2100 Chassis |
1 * 12V 60W power adaptor (P/N:63000-FSP060DBAB1552-RS) |
|
1 * Power cord |
1 * Wall mounting kit |
|
1 * Screw set |
1 * QIG |
|
1 * Power cord |
| |
| |
|
|
|
