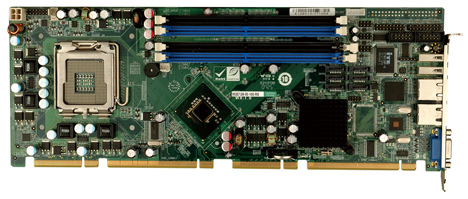

威強CPU長卡系列----PCIE-Q350
Features
1. 符合 PICMG1.3 和 RoHS
2. Intel® Q35 & ICH9-DO 平台
3. 支持 45nm LGA775 Intel® Core™2 Duo 和 Core™2 Quad 处理器
4. 六个支持 Intel® Matrix 存储技术的 SATAII 口
5. Dual Intel® PCIe GbE
6. 支持 TPM1.2 IT 安全解决方案
7. 威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份和恢复
Specifications
 PCIE-Q350.pdf
|
CPU |
LGA 775 Intel® Core™2 Quad, Core™2 Duo, Celeron® 处理器支持, 800 MHz, 1066MHz, and 1333MHz FSB |
|
芯片组 |
Intel® Q35 + ICH9-DO |
|
BIOS |
AMI BIOS |
|
内存 |
支持四个 240-pin 2 GB (max.) 800 MHz, 667 MHz 双通道 DDR2 SDRAM DIMM (系统最大 支持 8GB) |
|
以太网 |
Dual GbE
LAN1: Intel® 82566DM GbE 控制器支持 iAMT
LAN2: Intel® 82573L GbE 控制器 |
|
I/O接口 |
2 x RS-232
6 x SATA II (RAID 0, 1, 5, 10)
1 x KB/MS 接口
12 x USB 2.0
(支架上两个, SBC 上六个, 底板 上通过 pin header 引入的四个) |
|
数字I/O |
16-bit 数字 I/O, 8-bit 输入 / 8-bit 输出 |
|
Super I/O |
ITE 8718F |
|
红外连接器 |
1 x 红外 by pin header |
|
TPM |
1 x 20-pin 板载 header for TPM (Trusted Platrom Module) |
|
音频 |
10-pin 板载 header 接口连接威强 ACKIT- 888HD 7.1 通道 HD 音频套件 |
|
显示接口 |
模拟 VGA 输出 |
|
看门狗定时器 |
软件可编程, 支持1~255 sec., 系统复位 |
|
电源 |
ATX |
|
功耗 |
3.3V@3.0A, 5V@5.1A, 5Vsb@0.28A, 12@4.23A
(Intel® Core™ 2 Duo E6700 2.66 GHz at FSB 1066, 8 GB DDR2 667 MHz,3DMark 2001) |
|
图形 |
模拟VGA输出 |
|
工作温度 |
0ºC ~ 60ºC (32ºF ~ 140ºF) |
|
相对湿度 |
5% ~ 95%, 无冷凝 |
|
尺寸 |
338mm x 126mm |
|
重量 |
GW:1.1 kg |
Ordering Information
|
Part No. |
Description |
|
PCIE-Q350-R11 |
PICMG1.3 CPU card supports Intel® 45nm LGA 775 Core™2 Duo/Quad CPU at FSB800/1066/1333 MHz, Intel® Q35 & ICH9DO platform, Dual Intel® GbE, SATA II with RAID, USB |
|
AC-KIT883HD-R10 |
7.1 Channel HD Audio Kit with Realtek ALC883 supports dual audio streams |
|
CF-520-RS |
High Performance CPU Cooler (115mm x 115mm x 67mm, 115W) |
|
CF-775A-RS |
High performance CPU cooler (92 mm x 92 mm x 73 mm,130W) |
|
TPM-IN01-R10 |
Infineon 20-pin Trusted Platform Module with S/W Management Tool |
|
SDVO-100VGA-R10 |
PCIe x16 VGA Output SDVO Card supports dual display (IEI CPU board only) |
|
SDVO-100DVI-R10 |
PCIe x16 DVI Output SDVO Card supports dual display (IEI CPU board only) |
|
19800-000075-RS |
KB/MS cable with bracket |
Packing List
|
1 * PCIE-Q350 single board computer |
1 * Mini jumper pack |
|
6 * SATA cable (P/N:32000-062800-RS) |
3 * SATA power cable (P/N:32102-000100-200-RS) |
|
1 * Dual RS-232 cable (P/N:19800-000051-RS) |
1 * USB cable (P/N:CB-USB02-RS) |
|
1 * Utility CD |
1 * QIG | |
| |
|
|
|
