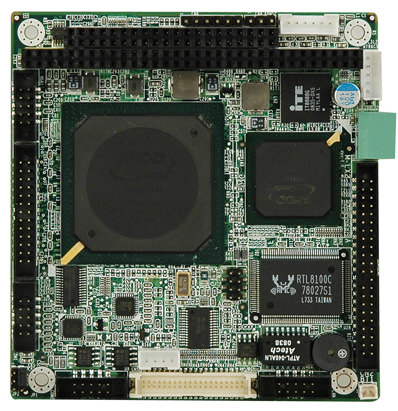

威強嵌入式主板----PM-LX2
Specifications
 PM-LX2.pdf
|
CPU |
AMD® Geode™ LX800 500 MHz 处理器 |
|
芯片组 |
AMD® Geode™ LX800 + CS5536 |
|
BIOS |
AMI BIOS |
|
内存 |
一个200-pin 400 MHz DDR SDRAM SO-DIMM (系统最大支持1 GB) |
|
以太网 |
一个Realtek RTL8100C 10/100Mbps Ethernet 芯片组 |
|
数字I/O |
2 x USB 2.0
2 x RS-232
1 x RS-422/485
1 x PS/2 for KB/MS
1 x LPT
1 x Silm FDD
1 x CF Type II
1 x IDE |
|
Super I/O |
PM-LX2-800-R10: SMSC SCH3114-NU
PM-LX2-800W-R10: SMSC SCH3114I-NU (宽温) |
|
显示接口 |
CRT集成AMD® LX800
24-bit TTL集成AMD® LX800 |
|
扩展槽 |
1 x PC/104支持通过ITE IT8888G |
|
看门狗定时器 |
软件可编程, 支持1~255 sec., 系统复位 |
|
电源 |
仅支持5V, AT |
|
功耗 |
5 V @ 1.09 A (AMD® Geode™ LX800支持512 MB DDR 400) |
|
工作温度 |
PM-LX2-800-R10: 0°C~60°C
PM-LX2-800W-R10: -40°C~70°C |
|
相对湿度 |
5% ~ 95%, 无冷凝 |
|
尺寸 |
95 mm x 95 mm |
|
重量 |
GW: 500g / NW 110g |
Ordering Information
|
Part No. |
Description |
|
PM-LX2-800-R10 |
PC/104 SBC with AMD® LX800 500 MHz, VGA/TTL, LAN, USB2,0 and CFII |
|
PM-LX2-800W-R10 |
PC/104 SBC with AMD® LX800 500 MHz, VGA/TTL, LAN, USB2,0 and CFII, wide temperature -40~70°C |
|
32400-001100-RS 32400-001100-RS |
FDD cable |
|
32200-015100-RS 32200-015100-RS |
LPT cable |
|
32200-074800-RS 32200-074800-RS |
RS-422/485 cable |
Packing List
|
1 * PM-LX2 single board computer |
1 * PS/2 KB/MS cable (P/N:32000-023800-RS) |
|
1 * Dual USB cable (P/N:32000-070301-RS) |
1 * LAN cable (P/N:32000-055702-RS) |
|
1 * ATA33 flat cable (P/N:32200-000009-RS) |
1 * Power cable (P/N:32100-130300-RS) |
|
1 * VGA cable (P/N:32000-033804-RS) |
2 * RS-232 cable (P/N:32200-000049-RS) |
|
1 * Mini jumper pack |
1 * QIG |
|
1 * Utility CD |
|
|
| |
|
|
|
