UNO-4678
Intel Celeron M Automation Computer with 3 x LAN, 8 x COM, PC/104
Main Features
  Onboard Celeron® M 1 GHz processor and supports 512 MB Memory
  Supports Lm sensor which can retrieve CPU and board temperature for monitoring purposes
  8 x isolated RS-232/422/485 ports with automatic flow control
  3 x 10/100Base-T RJ-45 ports
  Supports two USB and 1 x type I/II CF card
  Windows® CE 5.0 and Windows XP Embedded ready solution
  Windows 2000/XP driver ready and Linux driver support
  Windows XP Embedded (SP2) ready platform with write protection (EWF)
  Onboard system & I/O LED indicators
  Fanless and no internal cabling design
产品介绍

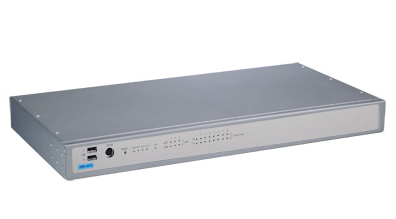

UNO-4678 is high-performance Fanless Box PC, which supports a Celeron M 1 GHz CPU, and equipped with eight isolated serial communication ports. They inherit the glory from the UNO family and includes the typical characteristics as it is fanless, robust, and reliable. Furthermore, in order to meet the diverse applications in industrial automation and control, varied interfaces and 1U form factor are suitable for use, especially for rack mounting. Also, LEDs for all ports and modes on the front panel simplify the monitoring status for operation, administration and maintenance. UNO-4678 is convenient and user-friendly platforms to fulfill a wide range of requirements.

UNO-4678.pdf
