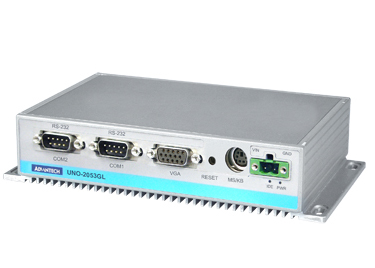

UNO-2053GL
Celeron M 1 GHz 通用网络控制器,带PC/104扩展
Main Features
  Isolation between chassis and power ground
  Fanless design with no internal cabling
  Windows® CE 5.0 & 6.0, Windows XP Embedded SP2, and Linux ready solution
  Audio with Mic in, Line in, Line out
  Two 10/100Base-T RJ-45 ports and two USB 2.0 ports
  Two standard RS-232 and one DB-15 VGA connector
  Onboard AMD Geode LX800 500MHz CPU
产品介绍
UNO-2053GL is a X86-grade platform that offers dual LAN and dual USB interfaces to fulfill user’s diverse communication needs. In addition, it also offers two RS-232 communication ports on board. Therefore, UNO-2053GL is an ideal solution for data gateway applications. UNO-2053GL is available with a pre-configured Windows CE image with optimized onboard device drivers. Microsoft Windows CE is a compact, highly efficient, real-time operating system designed for embedded systems without mechanical HDD limitations. To expand storage capability, the UNO-2053GL allows the addition of an external 2.5" HDD using Advantech’s UNO HDD expansion kit. It can be used for large data backup requirements and popular OS installations such as Microsoft Windows and Linux OS. Significant anti-vibration is maintained even with the mechanical HDD inside. (1 G) UNO-2053GL is a perfect embedded application-ready platform that can shorten your development time and offer a rich networking interface to fulfill diverse requirements.

UNO-2053GL.pdf
