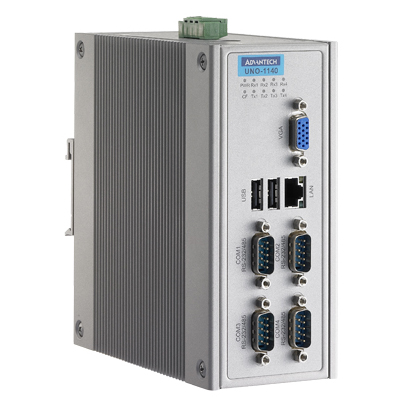

UNO-1140
486SX-grade SoC DIN-rail PCs with 1 x LAN, 8 x Isolated COM
Main Features
  Onboard Advantech EVA-X4150 SoC,486SX grade, 150 MHz processor
  Four isolated RS-232/485 and four isolated RS-485 ports with automatic flow control for UNO-1140F; Four RS-232/485 ports for UNO-1140
  Industrial-grade serial port design without data loss
  One 10/100 Base-T RJ-45 port
  Two USB 2.0 ports and one internal CompactFlash®
  Compact size, small footprint, saves space
  Front-accessible I/O and DIN-rail design for easy installation in control cabinet
  Wide operating temperature range up to 75° C
  Windows® CE 5.0, DOS, and Linux ready solution
  Onboard system & I/O LED indicators
  Fanless design with no intemal cabling
  Grounding isolation between chassis and system
  IP40 ingress protection
产品介绍
UNO-1140/F are DIN-rail mounted PCs which provide several serial communication ports and Ethernet interfaces. With their compact size, small footprint and front accessible I/Os, UNO-1140/F are convenient for wiring and DIN-rail installation in control cabinets. Their wide operating temperate range and industrial serial port design make UNO-1140/F excellent communication gateways even in critical environments. With OS and driver support on WinCE and Linux, users can integrate applications easily with application ready platforms that can provide versatile functions to fulfill diverse requirements.
